Product Description:
|
|
■Tinned,annealed,stranded or solid copper conductor.
|
|
■PVC or SR-PVC insulation
|
|
■FR-PE OR PE jacketed
|
|
■Tinned or bare copper wire spiral or braid shield
|
|
■Rated temperature: 60℃.Rated voltage: 600Volts
|
|
■Passes UL VW-1 vertical flame test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■PVC 或者SR-PVC絕緣
|
|
■FR-PE OR PE被覆
|
|
■裸銅或鍍錫銅絲，纏繞或編織屏蔽
|
|
■額定溫度：60℃額定電壓：600Volts
|
|
■可通過UL VW-1 ，垂直燃燒測試
|
|
Applications:
|
|
■Internal wiring or external interconnection of electronic equipment.
|
|
應用：
|
|
■用于電子設備內部布線或外部連接。
|
|
UL Style
|
Cores
|
Conductor
|
Insulation
Thickness
|
Nom.Dia
|
Shield Coverage
|
Jacket Thickness
|
Overall
Diameter
|
Conductor
Resistance at 20℃
|
|
AWG
|
No/mm
|
mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL21309
（Stranded)
|
2C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
0.76
|
6.00
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
0.76
|
6.30
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
0.76
|
6.40
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
0.76
|
6.60
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
0.76
|
7.00
|
59.40
|
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
0.76
|
7.40
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
0.76
|
8.00
|
23.20
|
|
16
|
26/0.25
|
0.76
|
3.10
|
>=65
|
0.76
|
10.20
|
14.60
|
|
3C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
0.76
|
7.90
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
0.76
|
8.10
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
0.76
|
8.30
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
0.76
|
8.50
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
0.76
|
8.90
|
59.40
|
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
0.76
|
9.40
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
0.76
|
10.00
|
23.20
|
|
4C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
0.76
|
8.10
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
0.76
|
8.30
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
0.76
|
8.60
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
0.76
|
8.90
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
0.76
|
9.30
|
59.40
|
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
0.76
|
9.80
|
36.70
|
|
5C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
0.76
|
8.40
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
0.76
|
8.70
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
0.76
|
8.80
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
0.76
|
9.20
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
0.76
|
9.80
|
59.40
|
|
6C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
0.76
|
8.80
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
0.76
|
9.10
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
0.76
|
9.40
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
0.76
|
9.70
|
94.20
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
|

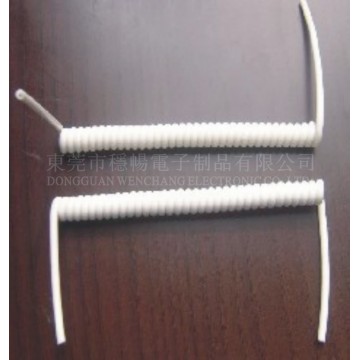

點擊圖片查看原圖
