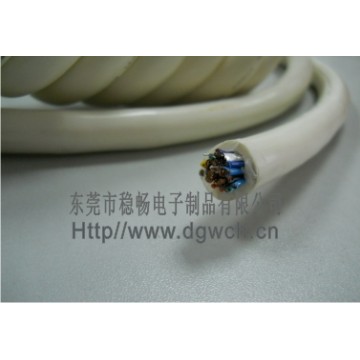

Product Description:

■Tinned,annealed,stranded or solid copper conductor.

■PP,PE or FR-PE insulation

■PUR jacketed

■Tinned or bare copper wire spiral or braid shield

■Rated temperature:60 OR 80℃.Rated voltage:125Volts

■Passes UL VW-1&CUL FT1 vertical flame test

說明：

■導體使用單股或絞線裸銅或鍍錫銅。

■PP PE 或者FR-PE絕緣

■PUR被覆

■裸銅或鍍錫銅絲，纏繞或編織屏蔽

■額定溫度：60或者80℃額定電壓：125Volts

■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試

Applications:

■Internal wiring or external interconnection of electronic equipment.

應用：

■用于電子設備內部布線或外部連接。

UL Style& CUL Type Cores Conductor Insulation
Thickness Nom.Dia Shield Coverage Jacket Thickness Overall
Diameter Conductor
Resistance at 20℃

AWG No/mm mm mm % mm mm Ω/KM

UL21031
CUL
（Stranded)
2C 30 7/0.100 0.23 0.80 >=65 0.76 3.60 381.00

28 7/0.127 0.23 0.90 >=65 0.76 3.90 239.00

26 7/0.16 0.23 1.00 >=65 0.76 4.00 150.00

24 11/0.16 0.23 1.10 >=65 0.76 4.20 94.20

22 17/0.16 0.23 1.30 >=65 0.76 4.60 59.40

20 21/0.178 0.23 1.50 >=65 0.76 5.00 36.70

18 34/0.178 0.23 1.80 >=65 0.76 5.60 23.20

16 26/0.25 0.23 2.00 >=65 0.76 7.80 14.60

UL21031
CUL
（Stranded) 3C 30 7/0.100 0.23 0.80 >=65 0.76 5.50 381.00

28 7/0.127 0.23 0.90 >=65 0.76 5.70 239.00

26 7/0.16 0.23 1.00 >=65 0.76 5.90 150.00

24 11/0.16 0.23 1.10 >=65 0.76 6.10 94.20

22 17/0.16 0.23 1.30 >=65 0.76 6.50 59.40

20 21/0.178 0.23 1.50 >=65 0.76 7.00 36.70

18 34/0.178 0.23 1.80 >=65 0.76 7.60 23.20

UL21031
CUL
（Stranded) 4C 30 7/0.100 0.23 0.80 >=65 0.76 5.70 381.00

28 7/0.127 0.23 0.90 >=65 0.76 5.90 239.00

26 7/0.16 0.23 1.00 >=65 0.76 6.20 150.00

24 11/0.16 0.23 1.10 >=65 0.76 6.50 94.20

22 17/0.16 0.23 1.30 >=65 0.76 6.90 59.40

20 21/0.178 0.23 1.50 >=65 0.76 7.40 36.70

UL21031
CUL
（Stranded) 5C 30 7/0.100 0.23 0.80 >=65 0.76 6.00 381.00

28 7/0.127 0.23 0.90 >=65 0.76 6.30 239.00

26 7/0.16 0.23 1.00 >=65 0.76 6.40 150.00

24 11/0.16 0.23 1.10 >=65 0.76 6.80 94.20

22 17/0.16 0.23 1.30 >=65 0.76 7.40 59.40

UL21031
CUL
（Stranded) 6C 30 7/0.100 0.23 0.80 >=65 0.76 6.40 381.00

28 7/0.127 0.23 0.90 >=65 0.76 6.70 239.00

26 7/0.16 0.23 1.00 >=65 0.76 7.00 150.00

24 11/0.16 0.23 1.10 >=65 0.76 7.30 94.20

以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
