Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.PVC insulation
|
|
■Tinned copper wire spiral shield
|
|
■PVC jacketed single core
|
|
■Use of spiral shield allows for fast and simple temination
|
|
■Rated temperature:105℃. Rated voltage:600 voltage
|
|
■Passes UL VW-1&CSA FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅,PVC絕緣
|
|
■鍍錫銅線纏繞
|
|
■單芯PVC被覆
|
|
■纏繞隔離
|
|
■額定溫度：105℃額定電壓：600V
|
|
■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■For use in recording studios,sound systems and electronic circuits and power adaptor for portable pc.
|
|
應用：
|
|
■用于錄音，錄影設備，音響系統，電子電路及手提電腦的變壓器.
|
|
UL Style& CSA Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Nom.Dia
|
Spiral shield
纏繞隔離
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
|
AWG
|
No/mm
|
mm
|
mm
|
NO/mm
|
mm
|
mm
|
Ω/KM
|
UL1120
CSA
（Stranded)
絞線
|
28
|
7/0.127
|
0.76
|
2.00
|
55/0.12
|
0.76
|
3.80
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
58/0.12
|
0.76
|
4.00
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
60/0.12
|
0.76
|
4.20
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
65/0.12
|
0.76
|
4.40
|
59.40
|
|
20
|
21/0.178
|
0.76
|
2.50
|
68/0.12
|
0.76
|
4.50
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
76/0.12
|
0.76
|
4.70
|
23.20
|
|
16
|
26/0.25
|
0.76
|
3.10
|
84/0.12
|
0.76
|
5.00
|
14.60
|
|
14
|
41/0.25
|
0.76
|
3.50
|
95/0.12
|
0.76
|
5.50
|
8.96
|
|
12
|
65/0.25
|
0.76
|
4.00
|
107/0.12
|
0.76
|
5.8
|
5.64
|
|
10
|
105/0.25
|
0.76
|
4.60
|
124/0.12
|
0.76
|
6.5
|
3.55
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

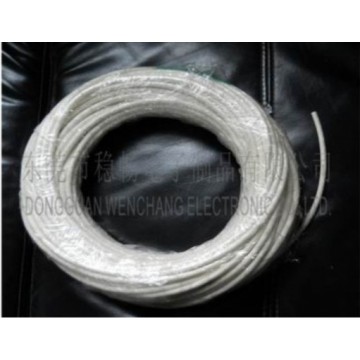

點擊圖片查看原圖
