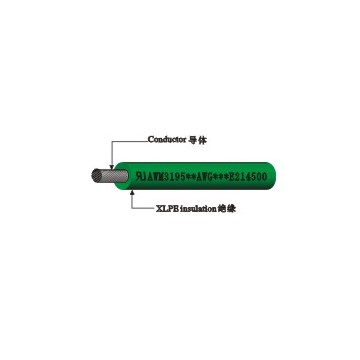

Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■XL-PE insulation.
|
|
■Rated temperature:125℃.Rated voltage:600volts
|
|
■Uniform thickness of wire to ensure easy stripping and cutting.
|
|
■Passes UL VW-1&CUL FT1/FT2 vertical flamt test
|
|
or horizontal flame test.
|
|
■Executive Standard:UL758 UL1581 CSA22.2.
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅
|
|
■無鹵照射環保PE絕緣
|
|
■額定溫度：125℃額定電壓：600Volts
|
|
■使用標準厚度，易剝，截?cái)嗳菀住?/span>
|
|
■可通過ULVW-1及CUL FT1/FT2，
|
|
垂直燃燒測試或水平燃燒測試。
|
|
■執行標準:UL758 UL1581 CSA22.2.
|
|
Applications:
|
|
■For general purpose internal wiring of electronic and electrical equipment.
|
|
應用：
|
|
■用于電子及電器設備內部配線.
|
UL Style
& CSA Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Overall
Diameter
完成外徑
|
Standard Put-up
標準長度
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
英制
|
公制
|
|
AWG
|
No/mm
|
mm
|
mm
|
Ft/coil
|
M/Coil
|
Ω/KM
|
UL3195
（Stranded)
絞線
|
8
|
171/0.25
|
1.15
|
6.20
|
1000
|
305
|
2.23
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|
