Product Description:
|
|
|
|
APPlications:
|
|
|

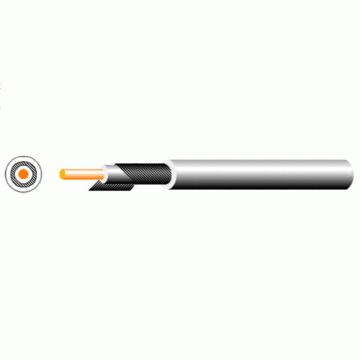

■Tinned ,annealed,stranded or solid copper conductor.TPE XL-PE insulation
|
■Internal wiring
|
|
|
■Tinned copper wire spiral shield
|
|
|
|
|
|
|
|
■TPE jacketed single core
|
|
|
|
|
|
|
|
■Use of spiral shield allows for fast and simple temination
|
應用：
|
|
|
|
■Rated temperature:80℃.Rated voltage:300V
|
|
|
■內部布線
|
|
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
|
Construction:
|
|
|
|
說明：
|
|
|
|
|
|
構造：
|
|
|
|
■導體使用單股或絞線裸銅或鍍錫銅,TPE絕緣
|
|
|
|
■鍍錫銅線纏繞
|
|
|
|
|
■單芯TPE被覆
|
|
|
|
|
■編織隔離
|
|
|
|
|
|
■額定溫度：80℃額定電壓：300V
|
|
|
|
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試
|
|
|
|
|
|
|
|
|
|
|
|
|
UL Style& CUL Type
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
No.of core
芯線數量
|
shield
COVERAGE
屏蔽
覆蓋率
|
Jacket Thickness
被覆厚度
|
Overall
Dimeter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
|
AWG
|
No/mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL11166
CUL（Stranded)絞線
|
30
|
7/0.10
|
0.18
|
1
|
>=65
|
0.33
|
2.00
|
381.00
|
|
28
|
7/0.127
|
0.18
|
1
|
>=65
|
0.33
|
2.10
|
239.00
|
|
26
|
7/0.16
|
0.18
|
1
|
>=65
|
0.33
|
2.20
|
150.00
|
|
24
|
11/0.16
|
0.18
|
1
|
>=65
|
0.33
|
2.40
|
94.20
|
|
22
|
17/0.16
|
0.18
|
1
|
>=65
|
0.33
|
2.60
|
59.40
|
|
20
|
21/0.178
|
0.18
|
1
|
>=65
|
0.33
|
3.10
|
36.70
|
|
18
|
34/0.178
|
0.18
|
1
|
>=65
|
0.33
|
3.80
|
23.20
|
|
16
|
26/0.25
|
0.18
|
1
|
>=65
|
0.33
|
4.00
|
14.60
|
|
14
|
41/0.25
|
0.18
|
1
|
>=65
|
0.33
|
4.60
|
8.96
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有。
|
