Product Description:
|
|
■Tinned,annealed,stranded or solid copper conductor.
|
|
■PVC or SR-PVC insulation
|
|
■PUR jacketed
|
|
■Tinned or bare copper wire spiral or braid shield
|
|
■Rated temperature:60 OR 75℃.Rated voltage:600Volts
|
|
■Passes UL VW-1&CUL FT1 vertical flame test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■PVC 或者SR-PVC絕緣
|
|
■PUR被覆
|
|
■裸銅或鍍錫銅絲，纏繞或編織屏蔽
|
|
■額定溫度：60或者75℃額定電壓：600Volts
|
|
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■External interconnection
|
|
應用：
|
|
■用于電子設備外部連接
|
|
UL Style& CUL Type
|
Cores
|
Conductor
|
Insulation
Thickness
|
Nom.Dia
|
Shield Coverage
|
Jacket Thickness
|
Overall
Dimeter
|
Conductor
Resistance at 20℃
|
|
AWG
|
No/mm
|
mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL21127
CUL
（Stranded)
|
2C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
1.15
|
6.70
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
1.15
|
7.00
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
1.15
|
7.10
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
1.15
|
7.30
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
1.15
|
7.70
|
59.40
|
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
1.15
|
8.10
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
1.15
|
8.70
|
23.20
|
|
16
|
26/0.25
|
0.76
|
3.10
|
>=65
|
1.15
|
10.90
|
14.60
|
|
3C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
1.15
|
8.60
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
1.15
|
8.80
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
1.15
|
9.00
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
1.15
|
9.20
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
1.15
|
9.60
|
59.40
|
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
1.15
|
10.10
|
36.70
|
|
18
|
34/0.178
|
0.76
|
2.80
|
>=65
|
1.15
|
10.70
|
23.20
|
|
4C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
1.15
|
8.80
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
1.15
|
9.00
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
1.15
|
9.30
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
1.15
|
9.60
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
1.15
|
10.00
|
59.40
|
|
20
|
21/0.178
|
0.76
|
2.50
|
>=65
|
1.15
|
10.50
|
36.70
|
|
5C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
1.15
|
9.10
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
1.15
|
9.40
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
1.15
|
9.50
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
1.15
|
9.90
|
94.20
|
|
22
|
17/0.16
|
0.76
|
2.40
|
>=65
|
1.15
|
10.60
|
59.40
|
|
6C
|
30
|
7/0.100
|
0.76
|
1.90
|
>=65
|
1.15
|
9.50
|
381.00
|
|
28
|
7/0.127
|
0.76
|
2.00
|
>=65
|
1.15
|
9.80
|
239.00
|
|
26
|
7/0.16
|
0.76
|
2.10
|
>=65
|
1.15
|
10.10
|
150.00
|
|
24
|
11/0.16
|
0.76
|
2.20
|
>=65
|
1.15
|
10.40
|
94.20
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
|

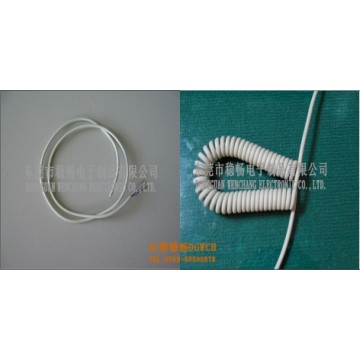

點擊圖片查看原圖
