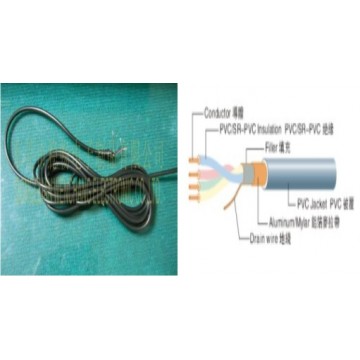

| Product Description: | ||||||||
| ■Tinned ,annealed,stranded or solid copper conductor.PVC insulation. | ||||||||
| ■Tinned copper wire spiral shield. | ||||||||
| ■PVC jacketed single core. | ||||||||
| ■Use of spiral shield allows for fast and simple temination. | ||||||||
| ■Rated temperature:80℃. Rated voltage:300Vvoltage. | ||||||||
| ■Passes UL VW-1&CSA FT1 vertical flamt test. | ||||||||
| 說明： | ||||||||
| ■導體使用單股或絞線裸銅或鍍錫銅,PVC絕緣. | ||||||||
| ■鍍錫銅線纏繞. | ||||||||
| ■單芯PVC被覆. | ||||||||
| ■纏繞隔離. | ||||||||
| ■額定溫度：80℃額定電壓：無規定. | ||||||||
| ■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試. | ||||||||
| Applications: | ||||||||
| ■For use in recording studios,sound systems and electronic circuits and power adaptor for portable pc. | ||||||||
| 應用： | ||||||||
| ■用于錄音，錄影設備，音響系統，電子電路及手提電腦的變壓器. | ||||||||
| UL Style& CSA Type |
Conductor 導體 |
Insulation Thickness 絕緣厚度 |
Nom.Dia |
Spiral shield 纏繞隔離 |
Jacket Thickness 被覆厚度 |
Overall Diameter 完成外徑 |
Conductor Resistance at 20℃導體電阻 |
|
| 線號 | 線數/線徑 | |||||||
| AWG | No/mm | mm | mm | NO/mm | mm | mm | Ω/KM | |
|
UL1347 CSA （Stranded) 絞線 |
30 | 7/0.102 | 0.41 | 1.15 | 38/0.1 | 0.41 | 2.20 | 381.00 |
| 28 | 7/0.127 | 0.41 | 1.20 | 40/0.1 | 0.41 | 2.30 | 239.00 | |
| 26 | 7/0.16 | 0.41 | 1.25 | 42/0.1 | 0.41 | 2.40 | 150.00 | |
| 24 | 11/0.16 | 0.41 | 1.30 | 44/0.1 | 0.41 | 2.50 | 94.20 | |
| 22 | 17/0.16 | 0.41 | 1.35 | 46/0.1 | 0.41 | 2.60 | 59.40 | |
| 20 | 21/0.178 | 0.41 | 1.40 | 47/0.1 | 0.41 | 2.70 | 36.70 | |
| 18 | 34/0.178 | 0.41 | 1.45 | 50/0.1 | 0.41 | 2.80 | 23.20 | |
| 16 | 26/0.25 | 0.41 | 1.50 | 52/0.10 | 0.41 | 2.90 | 14.60 | |
| 以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有 | ||||||||
