Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PVC insulation
|
|
■PVC jacketed
|
|
■Tinned or bare copper wire spiral or braid shield
|
|
■Rated temperature:80℃.Rated voltage:Not specified
|
|
■Passes UL VW-1&CSA FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■PVC絕緣
|
|
■PVC被覆
|
|
■裸銅或鍍錫銅絲，纏繞或編織屏蔽
|
|
■額定溫度：80℃額定電壓：沒有規定
|
|
■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■For internal wiring of computer,audio&video equipment.
|
|
應用：
|
|
■用于電腦及視聽設備內部連線.
|
|
UL Style& CSA Type
|
Cores
芯數
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Nom.Dia
|
Shield
COVERAGE
屏蔽
覆蓋率
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線號
|
線數/線徑
|
|
AWG
|
No/mm
|
mm
|
mm
|
%
|
mm
|
mm
|
Ω/KM
|
UL2592
CSA
（Stranded)
絞線
|
2C
|
30
|
7/0.100
|
0.21
|
0.75
|
>=65
|
0.21
|
2.60
|
381.00
|
|
28
|
7/0.127
|
0.21
|
0.80
|
>=65
|
0.21
|
2.70
|
239.00
|
|
26
|
7/0.16
|
0.21
|
0.90
|
>=65
|
0.21
|
3.00
|
150.00
|
|
24
|
11/0.16
|
0.21
|
1.05
|
>=65
|
0.21
|
3.20
|
94.20
|
|
22
|
17/0.16
|
0.21
|
1.20
|
>=65
|
0.21
|
2.50
|
59.40
|
|
20
|
21/0.178
|
0.21
|
1.40
|
>=65
|
0.21
|
3.10
|
36.70
|
|
3C
|
30
|
7/0.102
|
0.21
|
0.75
|
>=65
|
0.21
|
2.80
|
381.00
|
|
28
|
7/0.127
|
0.21
|
0.80
|
>=65
|
0.21
|
3.00
|
239.00
|
|
26
|
7/0.16
|
0.21
|
0.90
|
>=65
|
0.21
|
3.20
|
150.00
|
|
24
|
11/0.16
|
0.21
|
1.05
|
>=65
|
0.21
|
3.50
|
94.20
|
|
22
|
17/0.16
|
0.21
|
1.20
|
>=65
|
0.21
|
3.90
|
59.40
|
|
20
|
21/0.178
|
0.21
|
1.40
|
>=65
|
0.21
|
4.20
|
36.70
|
|
4C
|
30
|
7/0.102
|
0.21
|
0.75
|
>=65
|
0.21
|
3.00
|
381.00
|
|
28
|
7/0.127
|
0.21
|
0.80
|
>=65
|
0.21
|
3.20
|
239.00
|
|
26
|
7/0.16
|
0.21
|
0.90
|
>=65
|
0.21
|
3.50
|
150.00
|
|
24
|
11/0.16
|
0.21
|
1.05
|
>=65
|
0.21
|
3.90
|
94.20
|
|
22
|
17/0.16
|
0.21
|
1.20
|
>=65
|
0.21
|
4.20
|
59.40
|
|
20
|
21/0.178
|
0.21
|
1.40
|
>=65
|
0.21
|
4.60
|
36.70
|
|
以上線材數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

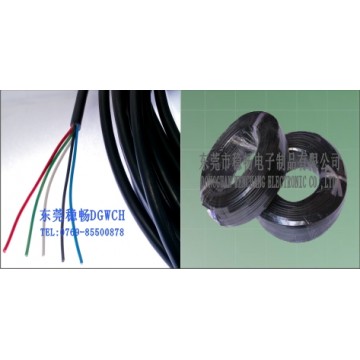

點擊圖片查看原圖
