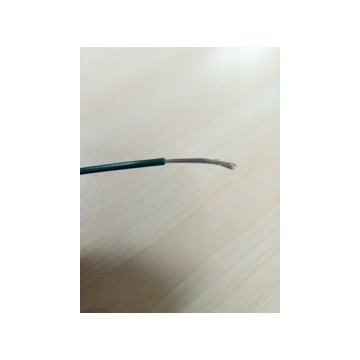

| Product Description: | APPlications: | ||||||
| ■36AWG-20AWG Tinned ,annealed,stranded or | ■For further processing in PVC jacketed cables and | ||||||
| solid copper conductor. | internal wiring of electronic equipment. | ||||||
| ■PVC insulation. | 應用： | ||||||
| ■Rated temperature:80℃.Rated voltage:150volts | ■用于進一步處理PVC夾套電纜和電子設備內部接線。 | ||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | Construction: | ||||||
| ■Passes UL VW-1&CUL FT1 vertical flamt test | 構造： | ||||||
| ■Top coated conductor is avaiable |
|
||||||
| 說明： | |||||||
| ■導體使用36AWG至20AWG之間單股或絞線裸銅或鍍錫銅。 | |||||||
| ■PVC絕緣 | |||||||
| ■額定溫度：80℃額定電壓：150Volts | |||||||
| ■使用標準厚度，易剝，截斷容易。 | |||||||
| ■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試 | |||||||
| UL Style& CUL Type |
Conductor 導體 |
Insulation Thickness 絕緣厚度 |
Overall Dimeter 完成外徑 |
Stand Put-up 標準長度 |
Conductor Resistance at 20℃導體電阻 |
||
| 線號 | 線數/線徑 | 英制 | 公制 | ||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL10272 | 30 | 7/0.10 | 0.152 | 0.65 | 4000 | 1220 | 381.00 |
| 28 | 7/0.127 | 0.152 | 0.70 | 4000 | 1220 | 239.00 | |
| 26 | 7/0.16 | 0.152 | 0.80 | 2000 | 610 | 150.00 | |
| 24 | 11/0.16 | 0.152 | 0.95 | 2000 | 610 | 94.20 | |
| 22 | 17/0.16 | 0.152 | 1.10 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.152 | 1.40 | 2000 | 610 | 36.70 | |
| UL10272 | 30 | 1/0.254 | 0.152 | 0.60 | 4000 | 1220 | 361.00 |
| 28 | 1/0.32 | 0.152 | 0.70 | 4000 | 1220 | 227.00 | |
| 26 | 1/0.404 | 0.152 | 0.80 | 2000 | 610 | 143.00 | |
| 24 | 1/0.511 | 0.152 | 0.90 | 2000 | 610 | 89.30 | |
| 22 | 1/0.643 | 0.152 | 1.00 | 2000 | 610 | 56.40 | |
| 20 | 1/0.813 | 0.152 | 1.15 | 2000 | 610 | 35.20 | |
