Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor，Top-coated.
|
|
■Rated temperature:105℃.
|
|
■Rated voltage:300Volts
|
|
■Passes UL VW-1&CSA FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅或先絞后鍍。
|
|
■額定溫度：105℃
|
|
■額定電壓：300Volts
|
|
■可通過UL VW-1 及 CSA FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■For use in internal wiring of appliances.
|
|
應用：
|
|
■用于電器，電腦設備。
|
|
UL Style& CSA Type
|
線號
|
Conductor
導體
|
Pitch
間距
|
Cores
芯數
|
Insulation Thickness絕緣厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線數/線徑
|
|
AWG
|
mm
|
NO
|
mm
|
mm
|
Ω/KM
|
|
UL2651 CSA AWM I/A
|
22
|
7/0.16
|
2.54
|
2P-32P
|
0.23
|
1.05
|
59.40
|
|
24
|
7/0.16
|
2.54
|
2P-32P
|
0.23
|
1.05
|
94.20
|
|
26
|
7/0.16
|
2.54
|
2P-32P
|
0.23
|
1.05
|
150.00
|
|
26
|
7/0.16
|
2.00
|
2P-40P
|
0.23
|
1.05
|
150.00
|
|
28
|
7/0.127
|
1.27
|
2P-40P
|
0.23
|
0.9
|
239.00
|
|
28
|
7/0.127
|
2.00
|
2P-40P
|
0.23
|
0.9
|
239.00
|
|
28
|
7/0.127
|
2.54
|
2P-32P
|
0.23
|
0.9
|
239.00
|
|
以上線材數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權歸穩暢電子制品有限公司所有
|

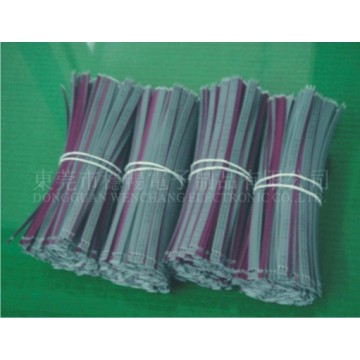

點擊圖片查看原圖
