Product Description:
|
|
■Tinned ,annealed,stranded or solid copper conductor.
|
|
■PE insulation
|
|
■FR-PE jacketed
|
|
■Tinned or bare copper wire spiral
|
|
■Rated temperature:80℃.Rated voltage:30Volts
|
|
■Passes UL VW-1&CUL FT1 vertical flamt test
|
|
說明：
|
|
■導體使用單股或絞線裸銅或鍍錫銅。
|
|
■PE絕緣。
|
|
■FR-PE被覆
|
|
■裸銅或鍍錫銅絲，纏繞或編織屏蔽
|
|
■額定溫度：80℃額定電壓：30Volts
|
|
■可通過UL VW-1 及 CUL FT1 ，垂直燃燒測試
|
|
Applications:
|
|
■For wiring of lowenergy non-hazardous circuits in a/v Equipment.
|
|
應用：
|
|
■用于低壓的視聽設備內部連接。
|
|
UL Style& CUL Type
|
線號
|
Conductor
導體
|
Insulation
Thickness
絕緣厚度
|
Jacket Thickness
被覆厚度
|
shield
隔離
|
Jacket Thickness
被覆厚度
|
Overall
Diameter
完成外徑
|
Conductor
Resistance at 20℃導體電阻
|
|
線數/線徑
|
Cores
芯數
|
|
AWG
|
No/mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
Ω/KM
|
UL21099
CUL
（Stranded)
絞線
|
28
|
7/0.127
|
2
|
0.25
|
0.85
|
麥拉或棉紙帶
|
0.3
|
2.40
|
239.00
|
|
3
|
0.25
|
0.85
|
0.3
|
2.60
|
|
4
|
0.25
|
0.85
|
0.3
|
2.80
|
|
5
|
0.25
|
0.85
|
0.3
|
3.00
|
|
6
|
0.25
|
0.85
|
0.3
|
3.20
|
|
7
|
0.25
|
0.85
|
0.3
|
3.40
|
|
8
|
0.25
|
0.85
|
0.3
|
3.60
|
|
9
|
0.25
|
0.85
|
0.3
|
3.80
|
|
10
|
0.25
|
0.85
|
0.3
|
4.00
|
|
26
|
7/0.16
|
2
|
0.25
|
1.00
|
麥拉或棉紙帶
|
0.3
|
2.60
|
150.00
|
|
3
|
0.25
|
1.00
|
0.3
|
2.80
|
|
4
|
0.25
|
1.00
|
0.3
|
3.00
|
|
5
|
0.25
|
1.00
|
0.3
|
3.40
|
|
6
|
0.25
|
1.00
|
0.3
|
3.60
|
|
7
|
0.25
|
1.00
|
0.3
|
3.80
|
|
8
|
0.25
|
1.00
|
0.3
|
4.00
|
|
9
|
0.25
|
1.00
|
0.3
|
4.20
|
|
10
|
0.25
|
1.00
|
0.3
|
4.50
|
|
24
|
11/0.16
|
2
|
0.25
|
1.10
|
麥拉或棉紙帶
|
0.3
|
3.20
|
94.20
|
|
3
|
0.25
|
1.10
|
0.3
|
3.40
|
|
4
|
0.25
|
1.10
|
0.3
|
3.60
|
|
5
|
0.25
|
1.10
|
0.3
|
3.80
|
|
6
|
0.25
|
1.10
|
0.3
|
4.00
|
|
7
|
0.25
|
1.10
|
0.3
|
4.20
|
|
8
|
0.25
|
1.10
|
0.3
|
4.40
|
|
9
|
0.25
|
1.10
|
0.3
|
4.60
|
|
10
|
0.25
|
1.10
|
0.3
|
4.80
|
|
以上數據僅供參考，不作為正式的設計依據，產品規格以雙方確認的規格書承認為準！最終解釋權規穩暢電子制品有限公司所有
|

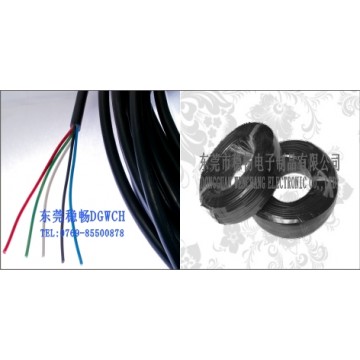

點擊圖片查看原圖
